| Specifications | Descriptions |
|---|---|
| Paper core diameter of the mother roll | 76mm |
| Collecting chuck | 3″/2″/1.5″ Core thickness > 5mm |
| Width of the mother roll | 500mm |
| Diameter of the mother roll | 400mm (Max) |
| Width of the sub-roll | 500mm (Max) |
| Sub-roll diameter | 150mm (Max) |
| Main motor power | 4KW |
| Frequency inverter | 5.5KW |
| Mechanical speed | 0-900m/min (adjustable) |
| Wall thickness | ≥ 20mm ±2mm |
| Touch screen (HMI) | English |
| Power supply | 380V 50HZ, 3 phase |
| Operation mode | PLC control |
| Color | Blue |
0
People watching this product now!

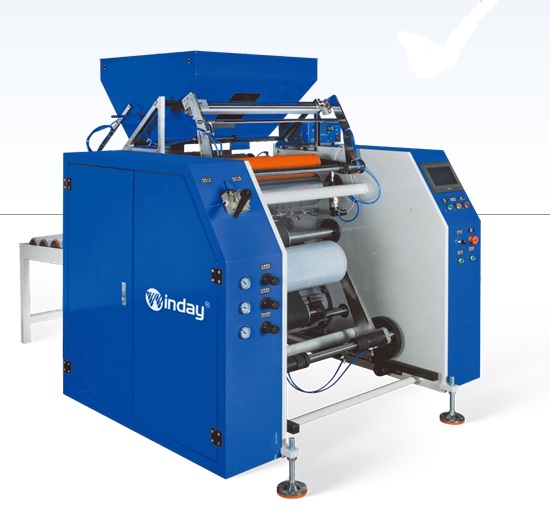

WD-500MM FULLY AUTOMATIC REWINDING MACHINE
